Rechargeable WIFI Receiver 2.4G ISM Wireless DMX512 XLR Receiver Unit LED Lighting for Stage PAR Party Light

Rechargeable WIFI Receiver 2.4G ISM Wireless DMX512 XLR Receiver Unit LED Lighting for Stage PAR Party Light
  • Продавецprada-handbags-sale.us
  • Список ценUS $24.06piece
  • Продажная ценаUS $24.06piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,6 (383)

Oписание продукта


HTB12Ur0HFXXXXXgXXXXq6xXFXXXh

DHL/EMS DMX wireless controller transmitter+receiver,LED Lighting Controller,LED transceiver DMX 512 control, Free Shipping

HTB1







Description
DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console) by wireless way.No time delay when signal data is transmitting, signal data is real time and reliably.This product adopts a 2.4G ISM frequency section.High effective GFSK modulate,communication design; 126 channels jumping frequency automatically, high anti-jamming ability. Advantages of the products
  1. Compact in size:Dimension only: 13.5cm x 2cm x 2cm
  2. It can operate either as transmitter or receiver and they are convenient in operating.
  3. It can be mixed to use with our other wireless dmx products.
  4. Using global free license 2.4GHz frequency band, from 2400MHz to 2525MHz, 126 automatically jumping frequencies to ensure smooth communications among transmitters and receivers. The standard reliable and safe communication distance between our transmitter and receiver is 500 meters.
  5. Capable of setting up different configurations to meet different needs, like point to point, point to multiple or multiple to multiple. The listed item supports up to 7 universes of DMX (512x7=3584 receivers).



Application

Stage lighting, Disco hall, Large literature performance, Gymnasium lighting, Temporary stage performance, City lighting system, TV station, Conference center, Professional showplace, Theme parks, Bar lighting and so on.





Specifications

  1. Frequency-Agile: 2.4Ghz Wireless DMX system with 512 channels and 7 groups
  2. Input Voltage: AC100/240V, 50/60Hz
  3. Work Voltage: 5V/500mA
  4. Clor LED for ease of programming
  5. One transmitter can communicate with multiple receivers
  6. Frequencies: 126 frequency band – Selects strongest channel automatically
  7. # of units: up to 7 units can be set on an ID address
  8. Effective Range: 500 Meters
  9. Max. Emit Power: 20dBm
  10. Receive Sensitivity: -94dBm

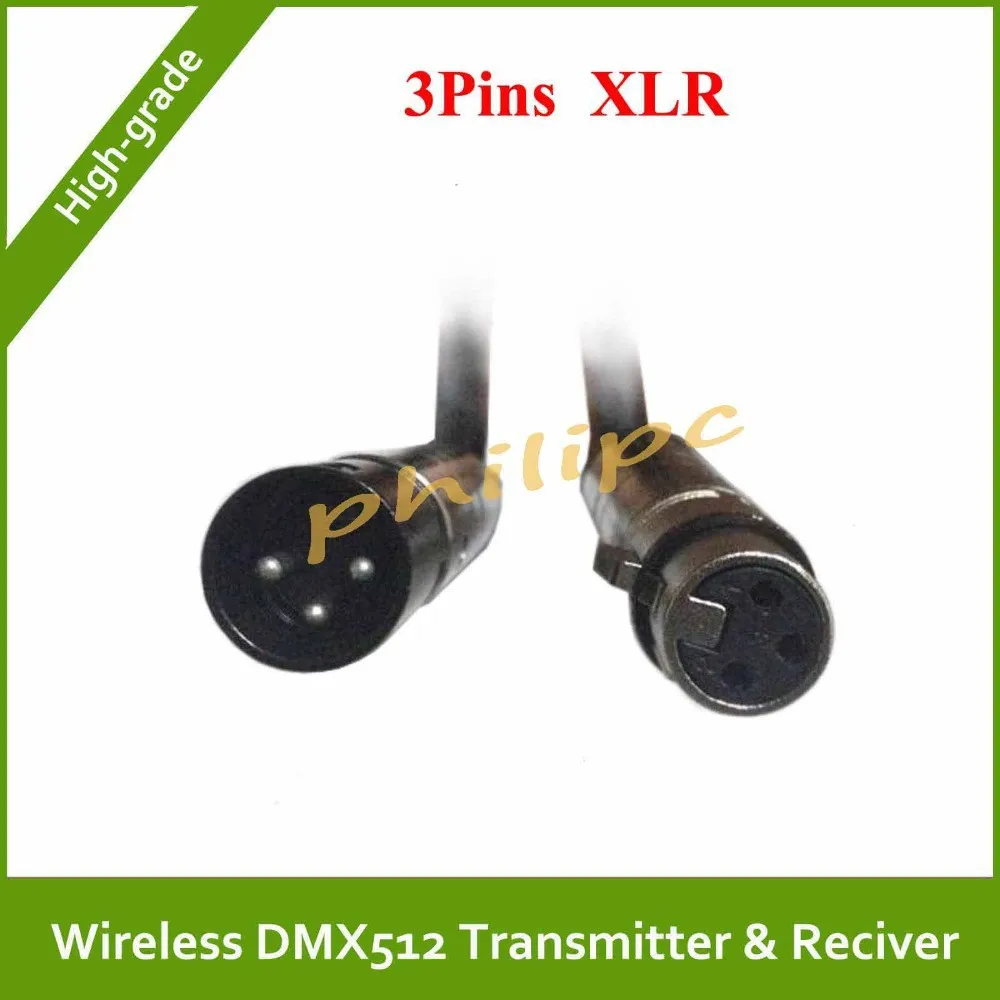

  11. DMX connector: 3pin
  12. Size: 25 x 220 mm
  13. Weight: 0.2KG





Operating manual
1).ID code and LED color corresponding relationship:
1:RED
2:GREEN
3:RED+GREEN
4:BLUE
5:RED+BLUE
6:GREEN+BLUE
7:RED+GREEN+BLUE
2). Press key 1 time to indicate ID setting,,Press again to set IC,then ID value adding 1 each time you

press the switch.
3). Working condition:
LED constant lit up:No DMX or wireless signal.
Red LED flash:Transmitting.
Green LED flash:receiving
4) RF frequency 2.400 - 2.525G,total 126 channels,it’s searching automatically,
5). ID Code “1-7” groups ID code,press ‘KEY’ for setting,it only can work under same ID code of transmitter

and receiver. (Same LED Color)



Establishing Communication
  1. Power on DMX512 wireless received board and transmitted board.
  2. Press “Key” button to set same ID value of transmitted board and received board. Please use different ID value if you need use more than 1 group wireless universals at same time in same place.
  3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.
  4. Communication was established correctly.



Caution:

  1. Indoor use only.
  2. 3 years warranty, repair, free replacement except damaged artificially.
  3. The manufacturer will not offer free service in warranty period if any repaired or uncapped had happened
  4. It is better to return to manufacturer if repair is a must, do not do any repairing job unless qualified electrician.
  5. The working condition should be under temperature -20~+45 degree, 10%~90%RH, no congelation, so as to ensure its lifetime.
  6. It can not be covered by any superstratum, it should be swept periodical to prevent dust.

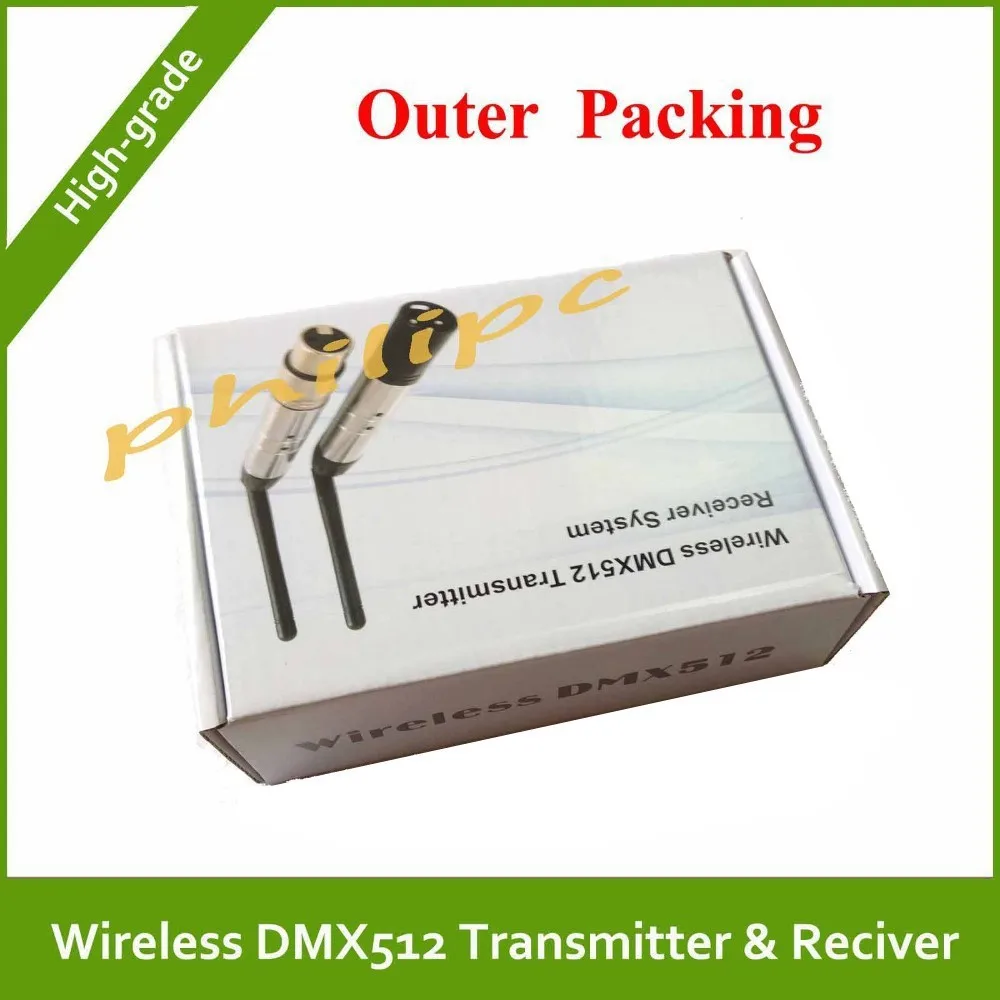

Package

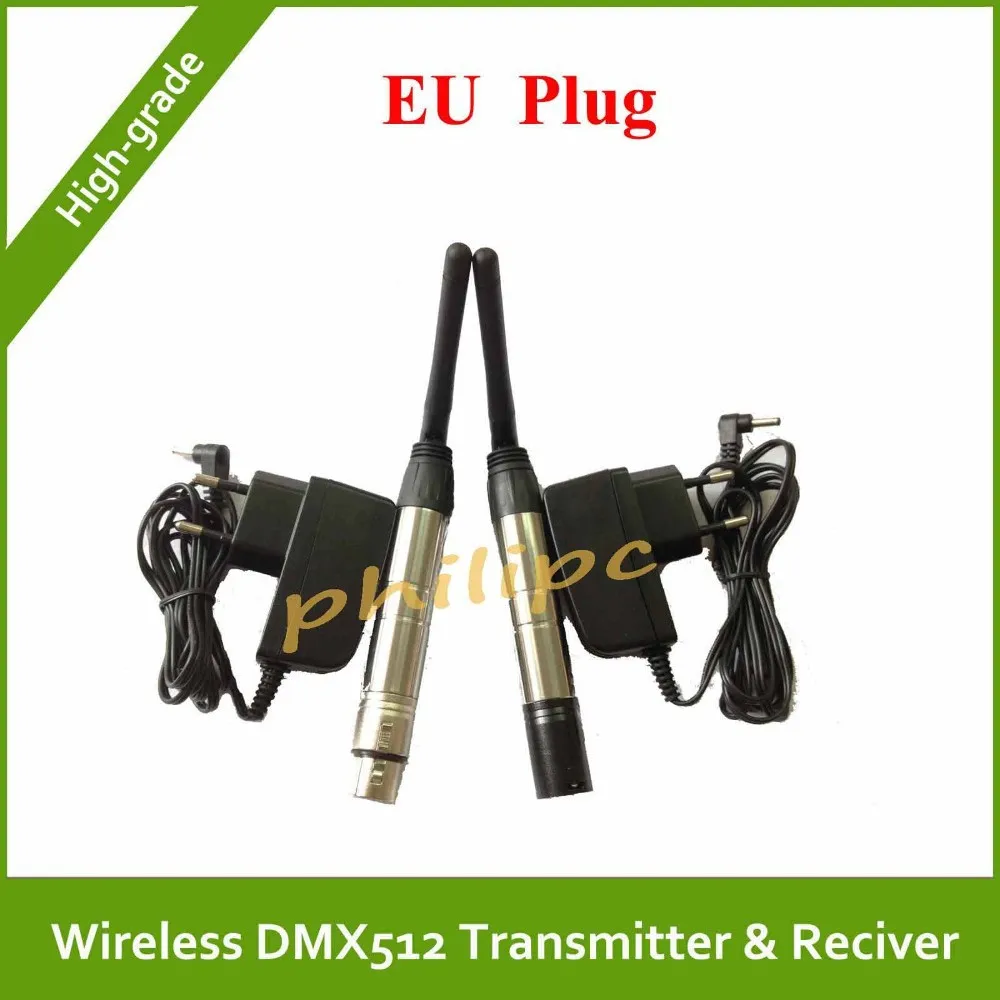

  1. 1 * DMX Transmitter(male plug)
  2. 1 * DMX Receiver(female plug)

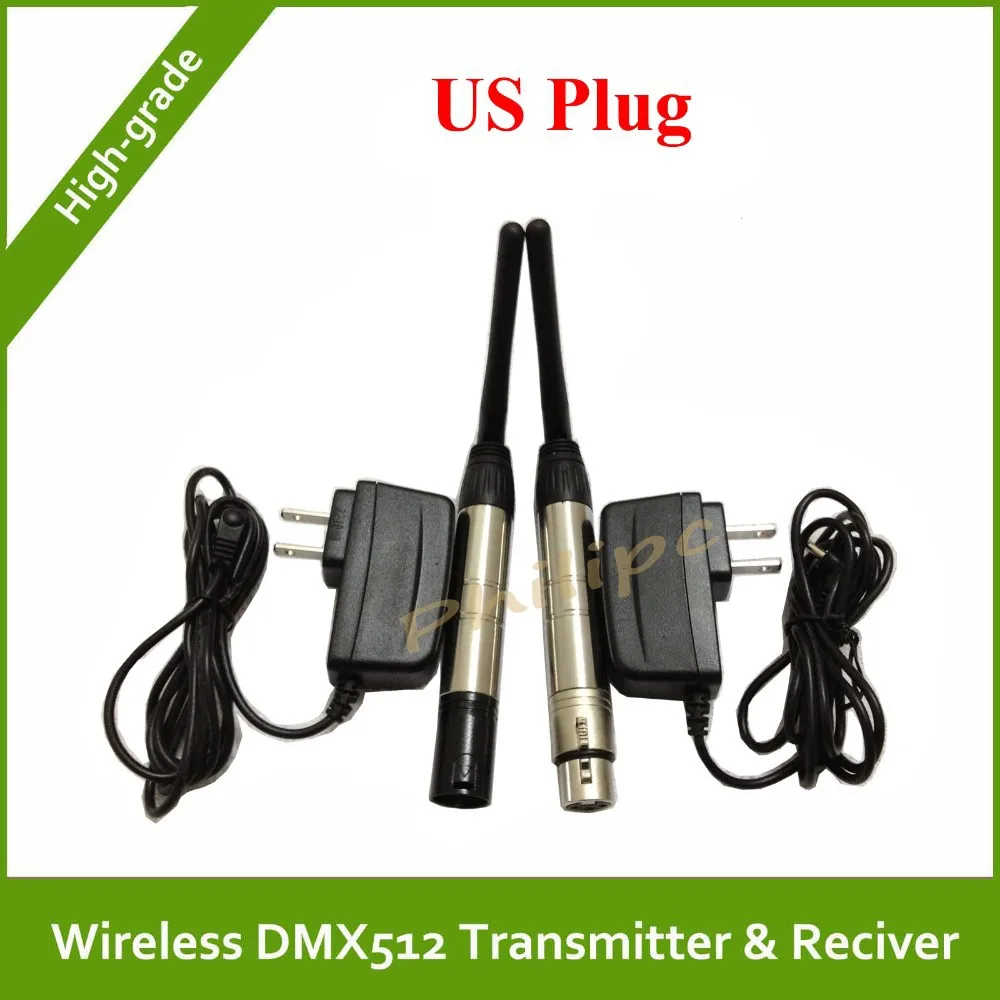

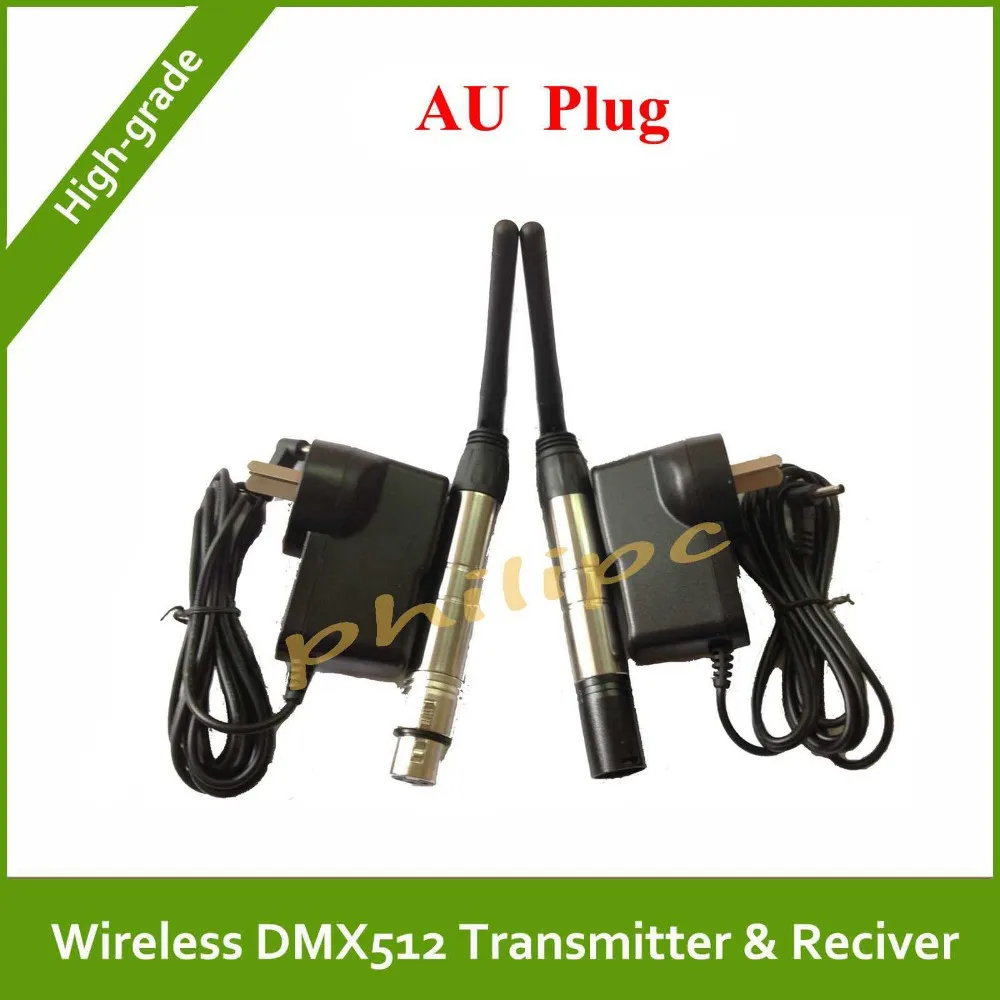

  3. 2 * Power Suppy (Pls note we have different power supply plug, UK plug, AU plug, EU plug, US plug ,please kindly inform us the power supply you need, or we will choose it all according to your country satndard.)





AUEUUKUSHTB12ga9HFXXXXXEXpXXq6xXFXXXhHTB1Al13HFXXXXawXVXXq6xXFXXXgHTB1mnCWHFXXXXXmaXXXq6xXFXXXB
