AUTOOL X60 OBD2 ODB 2 II Display Speedmeter 12V Fault Detection Code Reader Digital Turbo Boost Pressure Meter Alarm Speed Temp

AUTOOL X60 OBD2 ODB 2 II Display Speedmeter 12V Fault Detection Code Reader Digital Turbo Boost Pressure Meter Alarm Speed Temp
  • Продавецprada-handbags-sale.us
  • Список ценUS $28.32piece
  • Продажная ценаUS $28.32piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,8 (271)

Oписание продукта

2017 Latest Original XTUNER E3 WIFI OBD2 Professional Full System Diagnostic Tool With Special Function Automotive Scanner



1.Top 13 Reasons to Choose XTUNER E3:
  1. Extensive vehicle coverage for more than 70 vehicles makes from US domestic, Europe, Asia, Australia and China.
  2. Supporting 25 languages: Italian, Chinese (Simplified), English, Chinese (Traditional), Japanese, German, Russian, French, Spanish, Portuguese, Polish,Turkish, Dutch, Hungarian, Korean, Czech, Arabic, Indonesian, Persian, Thai, Vietnamese, Finnish, Swedish, Romanian, Bosnian, etc.
  3. Complete function capability including live data, ECU programming and so many others.
  4. Unparalleled OBDII functionalities-support ALL 5 OBDII protocols and ALL 10 test modes.
  5. Automatic Wi-Fi updates available in new software releases. Wi-Fi internet capability allows for wireless access throughout the workshop.
  6. Wi-Fi internet capability allows to wireless access to the workshop.
  7. Can indentify the year and model of the vehicles automatically and quickly.
  8. With brand-new design, the hardware features in stability and anti-interference, the built-in overvoltage protection module is able to protect scanner and vehicle against accidental damage during checking.
  9. Work stably and smoothly in high and low temperature environment.
  10. Operating systems: compatible with Windows XP/7/8/10, which can guarantee stable performance, better compatibility and expandability.
  11. Extremely easy-to-use with touch-screen operation and intuitive operation in the windows.
  12. Update: Support online update software at official site www.tdintel.com
  13. Hardware architecture uses a new design with multiple protection, interference and stability. Built-in overvoltage protection module is applied, in order to protect scanner    and vehicle against accidental damage during checking.





2.XTUNER E3 Support OBDII protocols:

ISO9141-2,ISO 14230, ISO 15765, SAE J1850-(PWM), SAE J1850-(VPW), etc.



3.XTUNER E3 testing modes inludes:
  1. Display the current data
  2. Display Freeze frame data
  3. Display the stored trouble diagnosis code
  4. Clear the fault code and stored value
  5. Test Results, Oxygen Sensor Monitoring (can only test only CAN)
  6. Test results, other components / system monitoring (test results, for oxygen sensor monitoring only CAN can be tested)
  7. Display Pending Diagnostic trouble codes (can only detect the current or recent driving period)
  8. Diagnostic component / control operation of the system
  9. Display vehicle information
  10. Permanent fault database (cleared D







4.XTUNER E3 Wifi Diagnostic Tool Function Coverage:

  1. Quick Test,
  2. Read ECU Info.
  3. Read DTCs,
  4. Erase DTCs,
  5. Clear learning value,
  6. Data Stream,
  7. Actuations,
  8. Read freeze frame data,
  9. Read/Write VIN,
  10. Basic Reset,
  11. Control unit adaptations,
  12. Throttle adaptations,
  13. Air bleeding,
  14. Level calibration,
  15. Theft alarm Reset,
  16. Key programming,
  17. Oil Service change,
  18. Idle speed learning,
  19. Idle speed Adjustment,
  20. Ignition timing adjustment,
  21. Camshaft timing control learning,
  22. Maintenance functions,
  23. ECU Initial startup,
  24. ECU initialization, etc



5.XTUNER E3 System Coverage:

ME-Motor electronics, CDI-Common Rail Diesel Injection, ETC-Electronic transmission control, ESM-Electronic selector module, SBC - Sensotronic Brake Control, ESP-Electronic stability program, BAS-Brake assist, Suspension, TPC-Tire pressure monitor, Airbag, CGW-Central gateway, EIS-Electronic ignition switch, OCP-Overhead control panel, UCP-Upper control panel, XALWA-Xenon headlamp, HRA-Headlamp range control, ATA-Anti-theft alarm system, IC-Instrument cluster, ASSYST-Active Service System, SCM-Steering column module, EPS-Electrical power steering, PTS - Parktronic system, EPB-Electric parking brake, COMAND/AUDIO, CD/DVD, TV tuner, CTEL-Cellular telephone, DCM-Door control module, ESA driver-Electric seat adjustment driver, ESA passenger-Electric seat adjustment passenger, AAC-Air conditioning, WSS-Weight sensor system, SVMCM-Special vehicle multifunction control module, etc.



6.XTUNER E3 Specifications:

XTUNER E3  Specifications
Operating System Windows XP/7/8/10
Processor ARM 32-bit Cortex processor
Communication 802.11 b/g Wireless LAN
Input Voltage DC 8-16V
Operating Temperature -10 to 70 °C(14-158°F),Relative Humidity:<90%
Storage Temperature -30 to 120°C(-22 to 248°F),Relative Humidity:<90%
Communication model Wi-Fi or Blue tooth
Dimension 150mm (5.91") * 94mm (3.70") * 40mm(1.57")
Unit Weight NW:0.07kg (0.154lb) GW:0.166kg (0.366lb)
Protocols UDS,ISO 9141-2, K/L lines, SAE-J1850 VPW,SAE-J1850 PWM,CAN ISO 11898 ISO 15765-4,High speed, Middle speed ,low speed and Single wire CAN,SAE-J1939,SAE-J1708,SAE-J1587

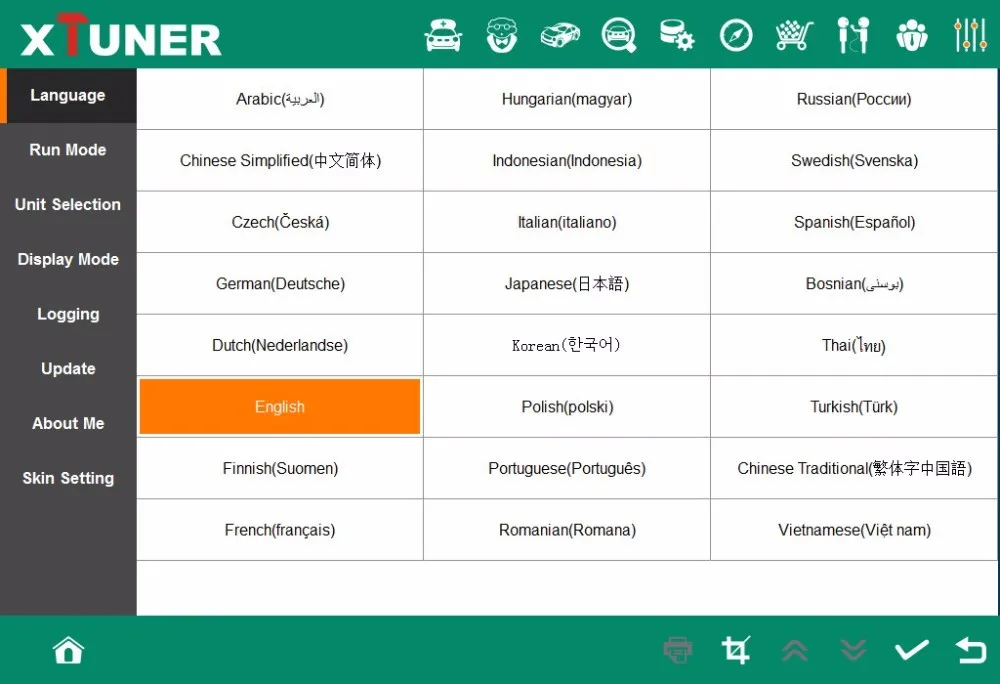

7.​Supporting 25 languages:

Chinese (Simplified), English, Chinese (Traditional), Japanese, German,  Russian,  French,  Italian, Spanish ,  Portuguese , Polish, Turkish, Dutch, Hungarian, Korean, Czech, Arabic, Indonesian, Persian, French, Thai, Vietnamese, Finnish, Swedish, Romanian, Bosnian, etc.

HTB1lwIAOVXXXXXZXVXXq6xXFXXXu

Diagnosis Service System (DSS)
● Extensive vehicle coverage for more than 70 brands worldwide including American, European, Asian, Australian and Chinese vehicle makes.
● Powerful multiple functions such as real time data, ECU programming and so much more.
● Unparalleled OBDII supporting capability for all 5 OBDII protocols and 10 testing modes.

xtuner-e3-wifi-diagnostic-tool-obd2-05

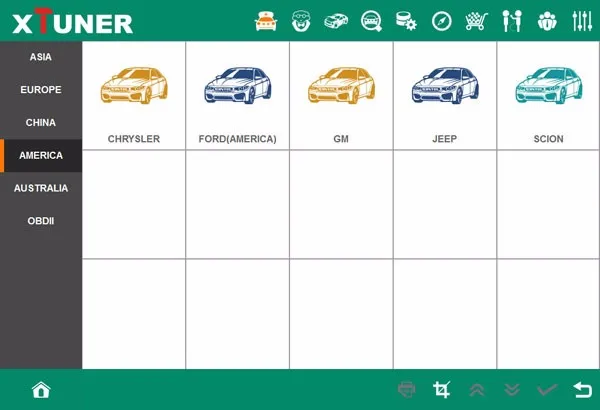

XTUNER E3 Vehicle Coverage:

US domestic: For CHRYSLER, for FORD, for GM, for JEEP, for SCION, etc.

01

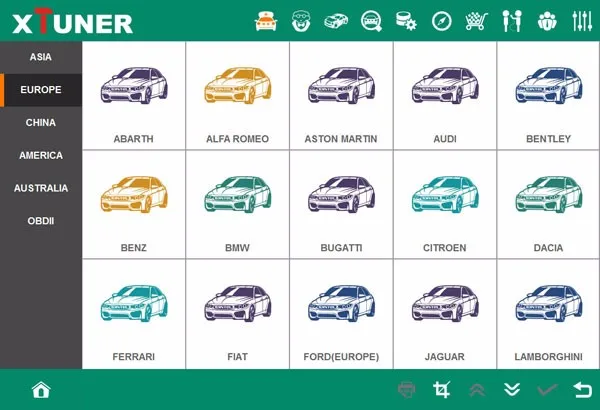

European: For ABARTH, For ALFA, For ASTON, For AUDI, For BENTLEY, For BENZ, For BMW, For BUGATTI, For CITROEN, For DACIA, For FERRARI, For FIAT, For FORDEU, For JAGUAR, For LAMBORGHINI, For LANCIA, For LANDROVER, For MASERTI, For MINI, For OPEL, For PEUGEOT, For PORSCHE, For RENAULT, For SAAB, For SEAT, For SKODA, For SMART, For VAUXHALL, For VOLVO, For VW, etc.

02

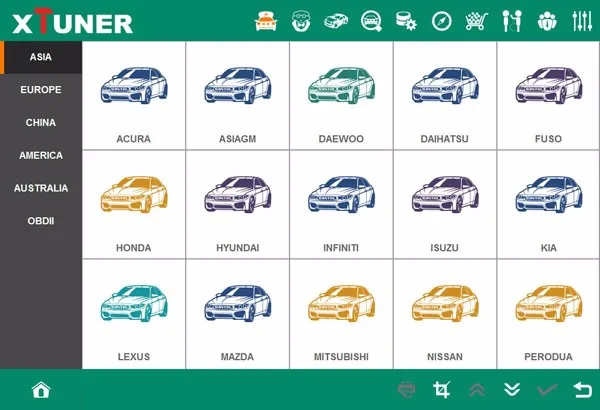

Asian: For ACURA, For ASIAGM, For DAEWOO, For DAIHATSU, For HONDA, For HYUNDAI, For For INFINITI, For ISUZU, For KIA, For LEXUS, For MAZDA, For MITSUBISHI, For NISSAN, For PERODUA, For PROTON, For SSANGYONG, For SUBARU, For SUZUKI, For TOYOTA, etc.

03

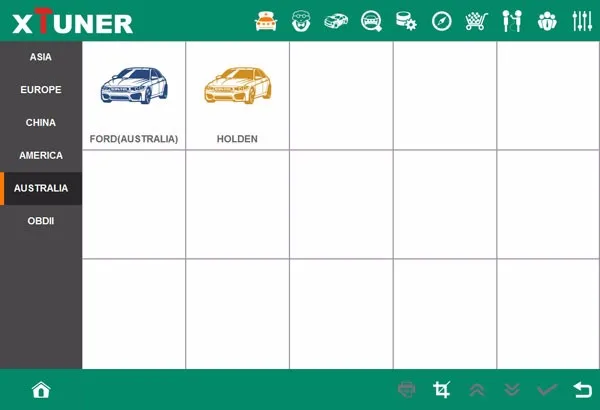

Australian: For HOLDEN and For FORD (AUSTRALIA).

04

China: For BYD, For CHANGAN, For CHANGHE, For CHERY, For EMGRAND, For ENGLON, For FOTON, For GEELY, For GLEAGLE, For GWM, For HBSH, For HUACHEN, For LIFAN, For WULING, For YUAN, etc.

05

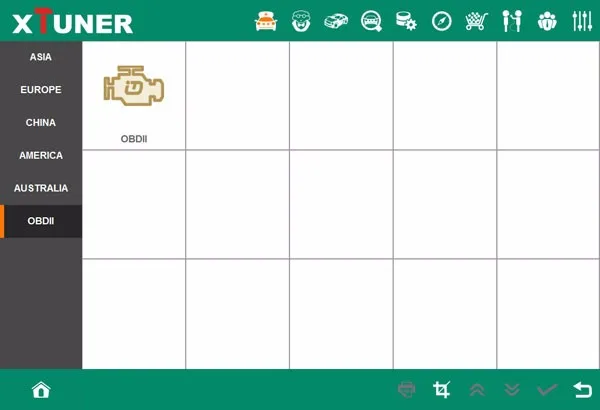

OBDII vehicle:
For CHRYSLER, For FORD, For GM, For TOYOTA, For LEXUS, For HONDA, For   HYUNDAI, For KIA, For MAZDA, For MITSUBISHI, For NISSAN, For SUBARU, For SUZUKI, For  ABARTH, For ASTON MARTIN, For BUGATTI, For FERRARI, For LAMBORGHINI, For MASERTI, For BENZ, For BMW, For VW, For AUDI, For SEAT, For SKODA, For PORSCHE, For JAGUAR, For LANDROVER, For VOLVO, For SAAB, For ALFA, etc.

06

Expert Service System (ESS)

Expert service system, according to customers\' requirement list, focus on special functions such as Oil change, Idle speed learning, Idle speed Adjustment, Air bleeding, Level calibration, Throttle adaptations, Steering Angle Sensor Calibration, EPB Reset, DPF Reset, ECU Initial startup, ECU initialization, etc.

07

Maintenance Service System (MSS):
Maintenance service focus on daily maintenance special functions, such as Oil reset, EPB, TPMS, ABS BLEEDING, DPF, ETS, BATTERY, INJECTOR.

08
