AC 110V 220V 1CH RF 433 Mhz Wireless Remote Control Switch Learning Code 1 Relay Lamp Light Controller 433.92Mhz superheterodyne

AC 110V 220V 1CH RF 433 Mhz Wireless Remote Control Switch Learning Code 1 Relay Lamp Light Controller 433.92Mhz superheterodyne
  • Продавецprada-handbags-sale.us
  • Список ценUS $26.82piece
  • Продажная ценаUS $26.82piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,3 (569)

Oписание продукта

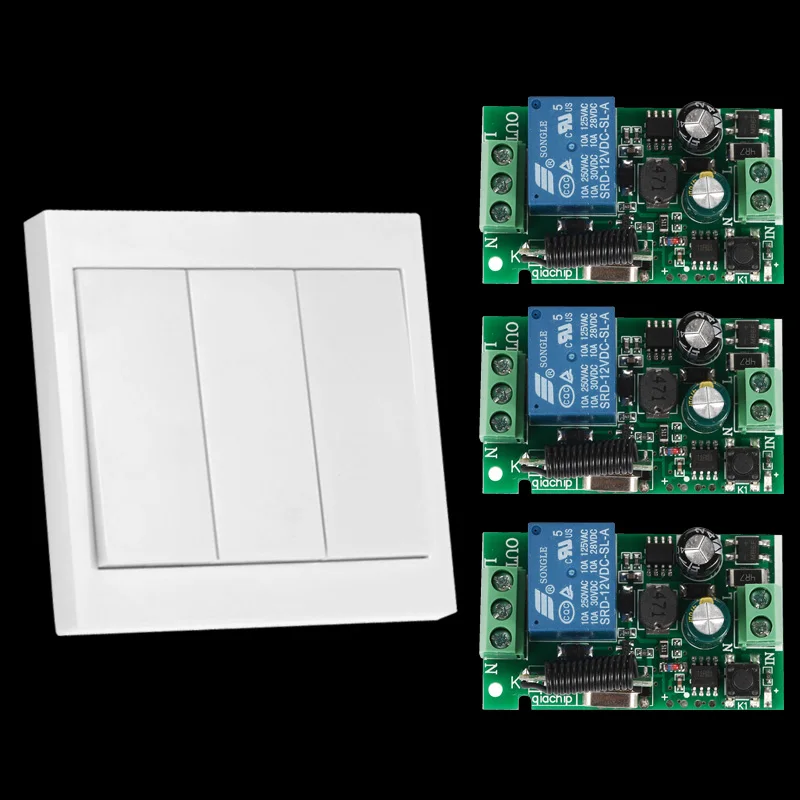

Package Included:

Receiver module (KR2201-4 ) * 3pcs ( include Shell );
Button Wall Panel Transmitter   * 1pcs   (Not include battery)

Specifications:

The input voltage:   AC85V - AC220V

RF working frequency:  315MHz  or  433.92MHz

RF work modes:  Superheterodyne receiver

Receiving sensitivity:   - 107 DBM

Remote control distance:  10M

The number of can store the remote control:   20

Support remote control type:   Learning code,fixed code (customizable rolling code)

A variety of work modes:  inching, self-locking, interlocking.

Connection mode:  fixed wiring pillar

Wiring diagram 1:

NO:  Output , normal open;
COM:Output , common ;
NC:  Output , normal close.
433Mhz-Universal-Wireless-Remote-Control-Switch-AC-85V-250V-110V-220V-1CH-Relay-Receiver-Module-and (1)
Instructions
How to use

The first step: Clear the receiver\'s memory

Press the Learning Button on the receivers for 8 times, the codes will be cleaned.
After cleaning the code, all the remote control can not work any more.

Step Two: Match Wall Panel Remote Transmitter and Receiver
Press the learning key on the receiver twice time, it comes into toggle setting mode.
Wait for a moment, the LED will be on , it comes into learning state.
Press the remote button, LED indicator on the receiver board will flash then come off.
Learning successfully.


Size:

chicun

123123

It is a panel wall transmitter that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver, it can work with any kind learning code receiver in our store. So that the trouble brought by routing is avoided successfully.


Specifications:
Working Voltage: DC12V 27A Battery (Not include battery)
Working Frequency: 433mhz
IC Chip: EV1527
Distance: 10m
Working Current : 20-25ma
Big Button wall Transmitter is your best choice for home or Public Places remote control system.
