Free Shipping 100~1000mm stroke Cnc Linear Guide Rail Kit Motorized Stepper Motor Linear Motion Actuator System Parts

Free Shipping 100~1000mm stroke Cnc Linear Guide Rail Kit Motorized Stepper Motor Linear Motion Actuator System Parts
  • Продавец
  • Список ценUS $131.00piece
  • Продажная ценаUS $131.00piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,5 (187)

Oписание продукта

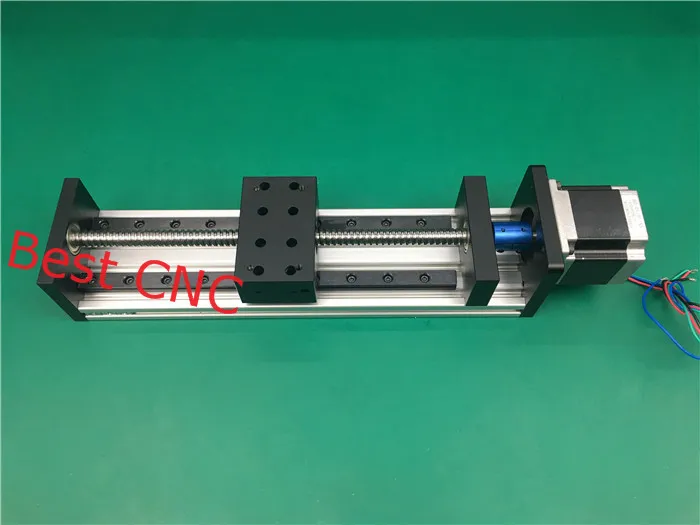

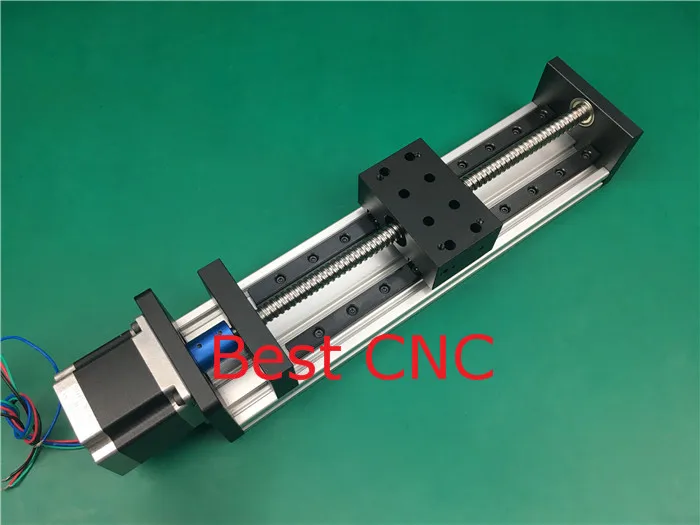

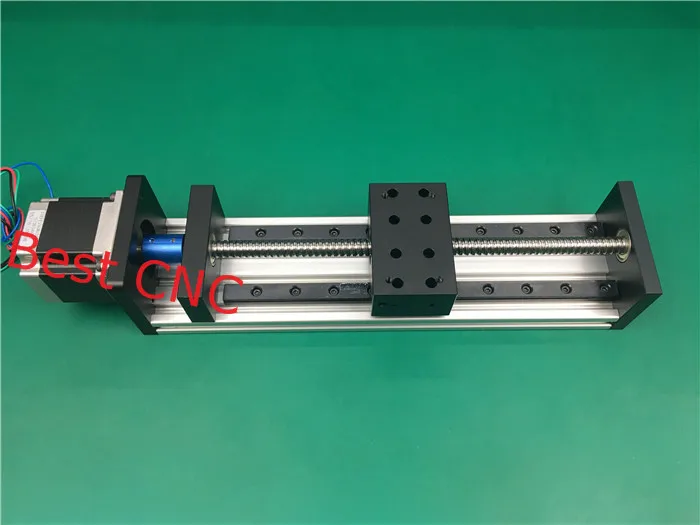

GX80*50 1204 100mm Ball Screw Slide Rail +1pc nema23 Stepper Motor

Model: GX80*50 1204

Effective stroke: 100mm

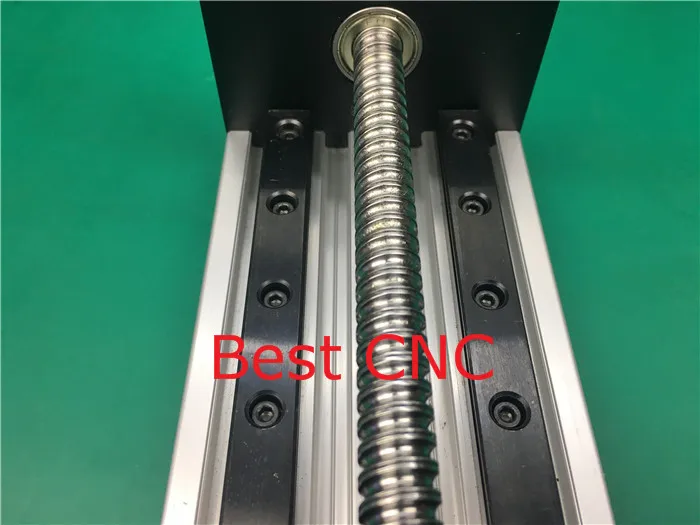

Ballscrew diameter: 12 mm,lead 4mm

Block size:80*50mm(it also have 155*80,155*150, if you need please contact me.)

Speed: Max 100mm/s

Repeat positioning accuracy:up to ± 0.02mm

Horizontal load: max 100kg(150*150 block)

Vertical load:       30kg

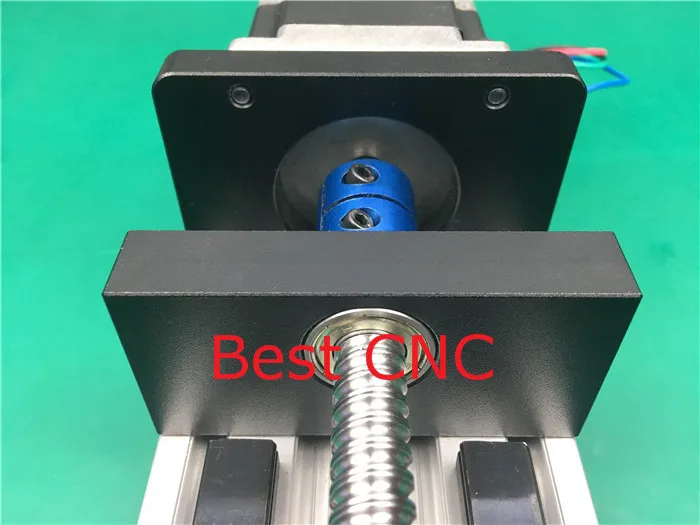

Nema 23 stepper motor

Torque 0.9NM

Current 3A

Voltage 24V

Diameter: 57*56mm

If you want high torque motor or you do not want with stepper motor, please contact me, i will send new link for you. Besides,we can also customize the travel length as your demand,contact us if any needs please.


GX have three size for block:

80*50mm is 1pc block,it use 12mm rail.

155*80mm is 1pc block, it use 15mm rail.

155*150mm is 2pcs block, it use 15mm rail.


You can tell me your requiremnt for loading weight, so we can recommend right size for you.

GX 80x50_

This drawing is for 100mm stroke, if you want 200mm stroke, it just add 100mm. if you need 500mm, it add 400mm and so on.




We also accept customized products, delivery time 3-7 days,Welcome InquiryPrety

1. We have almost all product in stock, we will send out in 24 hours.
2. Normal Express: We----Agent----DHL/FedEx----Customer. Package to DHL/FedEx total cost 3 days. Tracking number will come out in 3 days.
    If you need directly send to DHL/FedEx, it will save the 3 days, cost is 5~10 times of Normally.
3. Post Air Mail sometimes will be delay, pls don\'t leave a 1~3 stars feedback due to this.
    If shipping delay, pls contact us extend confirm time before dispute. And keep in touch. It\'s repect to us.
4. If you are in Remote Area of DHL/FEDEX, we reserve the right charge for Remote Surcharge.
5. We will choose the best way send the goods to you if the courier you choosed it not good to Clearance.
6 .Customers responsible for CUSTOMS DUTY.
We accept bank TT,western union,moenybook,moenygram etc
Payment must be made within 48hours of the auction end time
Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility.
When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos.
Any reason required for all refund. Item must be in it\'s original condition and no physical damage. Buyer responsible for all shipping cost.
